ULTRASONIC CARCASS VALUE TECHNOLOGY
AND LIVE ANIMAL GRADING SYSTEM
PARTS MANUAL
Revision 5
USDA AND PACKER
APPROVED
FOR MORE INFORMATION, CONTACT:
Best & Donovan
5570 CREEK RD., CINCINNATI, OHIO 45242, USA
TOLL FREE: 1-800-553-2378 TEL.: 1-513-793-9180
FAX: 1-513-791-0925
WARRANTY
Best & Donovan warrants the machine against defective parts & workmanship for six (6) months from date of factory shipment. In the fulfillment of its warranty, the sole obligation of Seller shall be to repair or replace, at its option F.O.B. its factory, shipping charges prepaid, and which after inspection by Seller are found to be defective. Buyer shall notify Seller of defect in writing, promptly upon discovery, within the warranty period. This warranty does not cover defects caused by corrosion or normal deterioration. It does not extend to consequential damage, loss or delay associated with a warranty defect and it does not cover any costs of labor, travel or other expenses associated with the repair or replacement of defective parts. Seller assumes no liability for product loss or other claims whatsoever arising out of the use or application of the machine in Meat Slaughtering/Processing operations, whether the machine is used alone or in conjoint use with other Meat Slaughtering/Processing Machines or Processes.
This warranty is voided if repairs, replacements or alterations are made by others without prior authorization by Seller. Notwithstanding the foregoing, Seller"s warranty obligations with respect to any items not manufactured by Seller shall not exceed the obligations undertaken by the manufacturer thereof under express warranty to the Seller. This express warranty is in lieu of all other warranties of fitness of the machine for any particular purpose.
|

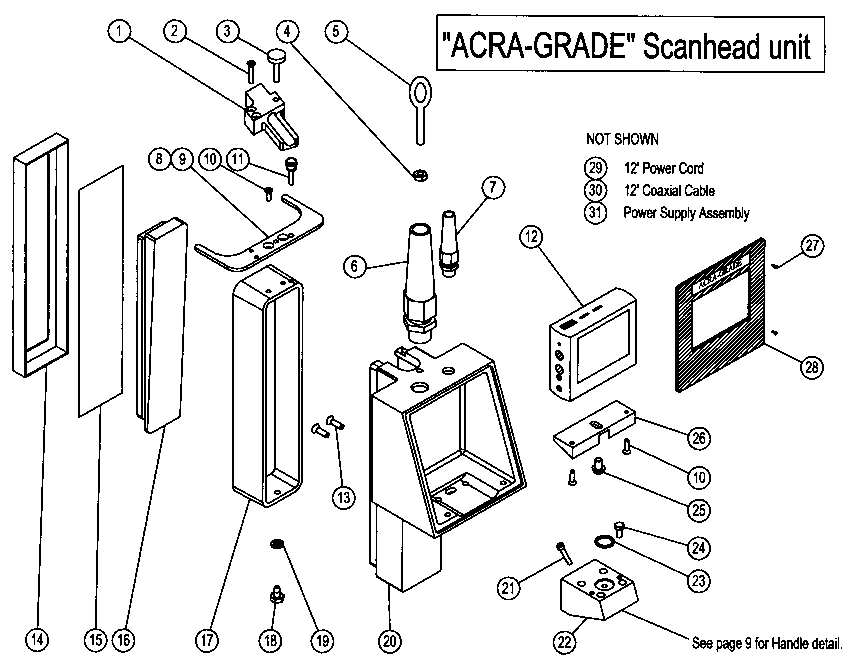

"ACRA-GRADE" SCAN HEAD PARTS |
||||
|
All prices subject to change |
||||
|
REF |
PART NUMBER |
DESCRIPTION |
QTY |
PRICE |
|
1 |
8100104 |
PEN CLAMP |
1 |
$ 100.00 |
|
2 |
9800359 |
6-32 x 3/4" FLAT HEAD SCREW |
2 |
$ 0.25 |
|
3 |
8101513 |
PEN CLAMP, THUMB SCREW |
1 |
$ 5.00 |
|
4 |
9801678 |
1/4-20 HEX NUT |
3 |
$ 0.25 |
|
5 |
8101509 |
1/4-20 x 2" EYE BOLT |
1 |
$ 10.00 |
|
6 |
8101503 |
PLASTIC CABLE GLAND, 1/2 |
1 |
$ 15.00 |
|
7 |
8101502 |
PLASTIC CABLE GLAND, 1/4 |
1 |
$ 15.00 |
|
8 or |
8100108 |
LOCATOR PLATE (SKIN ON) |
1 |
$ 20.00 |
|
9 |
8100105 |
LOCATOR PLATE (SKIN OFF)(shown) |
1 |
$ 20.00 |
|
10 |
9800357 |
8-32 x 1/2" FLAT HEAD SCREW |
4 |
$ 0.25 |
|
11 |
8101508 |
10-32 x 3/4" THUMB SCREW |
1 |
$ 5.00 |
|
12 |
8101507 |
3" LCD MONITOR |
1 |
$ 310.00 |
|
13 |
9801091 |
10-32 x 1/2" FLAT HEAD SOCKET CAP SCREW |
2 |
$ 0.25 |
|
14 |
8100113 |
SST SHROUD |
1 |
$ 50.00 |
|
15 |
8101514 |
MEMBRANE COVER (Polyethylene) |
A/N |
$ 30.00 |
|
16 |
8100121 |
STANDOFF GUIDE INSERT (Superflab) |
1 |
$ 350.00 |
|
17 |
8100107 |
TRANSDUCER COVER |
1 |
$ 400.00 |
|
18 |
8100125 |
TRANSDUCER COVER LOCATOR BOLT |
1 |
$ 4.75 |
|
19 |
9801935 |
1/4" LOCKWASHER |
1 |
$ 0.25 |
|
20 |
8100106 |
AUS TRANSDUCER HOUSING |
1 |
$1,600.00 |
|
21 |
9801279 |
8-32 x 5/8" SHC SCREW |
4 |
$ 0.25 |
|
22 |
8100109 |
HANDLE TRANSITION PIECE |
1 |
$ 150.00 |
|
23 |
7811056 |
2-015 "O"-RING |
1 |
$ 1.90 |
|
24 |
9802740 |
10-24 x 1/2" HEX HEAD MACHINE SCREW |
2 |
$ 0.25 |
|
25 |
9800204 |
1/4-20 x 1/2" ROUND HEAD SCREW |
1 |
$ 0.25 |
|
26 |
8100102 |
SCREEN ADAPTER |
1 |
$ 20.00 |
|
27 |
9800016 |
3-48 x 1/4" SLOTTED MACHINE SCREW |
4 |
$ 0.25 |
|
28 |
8100120 |
MONITOR COVER |
1 |
$ 60.00 |
|
29 |
8101501 |
CORD MALE (12 FT) |
1 |
$ 50.00 |
|
30 |
8101506 |
COAXIAL CABLE (12 FT) W / BNC CONNECTOR |
1 |
$ 30.00 |
|
31 |
8101510 |
POWER SUPPLY ASSY |
1 |
$ 50.00 |
|
32 |
8101600 |
TRANSDUCER HOUSING WITH HARDWARE |
1 |
$1,635.00 |
|
"ACRA-GRADE" SYSTEM PARTS LISTING |
||||
|
All prices subject to change |
||||
|
UNIT |
INCLUDED |
QTY |
PRICE |
|
|
PARTNO. |
PARTNO's |
DESCRIPTION |
REQ'D |
|
|
8103000 |
-- |
COMPLETE "ACRA-GRADE" SYSTEM |
||
|
8100001 |
SCAN HEAD COMPLETE (HIGH INCLINE) |
1 |
$ 4,000.00 |
|
|
or |
||||
|
8100002 |
SCAN HEAD COMPLETE (LOW INCLINE) |
1 |
$ 4,000.00 |
|
|
8101510 |
POWER SUPPLY ASSEMBLY |
1 |
$ 50.00 |
|
|
8101520 |
VIDEO CABLE, 5 ft. |
1 |
$ 50.00 |
|
|
8102000 |
ALOKA 500V ULTRASONIC CONSOLE |
1 |
$ 12,610.00 |
|
|
8102001 |
ALOKA TRANSDUCER ASSEMBLY |
1 |
$ 14,763.00 |
|
|
8102002 |
COMPUTER SYSTEM COMPLETE (w/ SOFTWARE) |
1 |
$ 8,600.00 |
|
|
8102003 |
9" B/W MONITOR |
1 |
$ 250.00 |
|
|
8102004 |
1/2" VCR |
1 |
$ 259.00 |
|
|
8102005 |
TRAINING VIDEO |
1 |
$ 40.00 |
|
|
8102002 |
-- |
COMPUTER SYSTEM COMPLETE (w/ SOFTWARE) |
$ 8,600.00 |
|
|
8102010 |
COMPORT INTERFACE CARD |
1 |
$ 60.00 |
|
|
8102011 |
CX100-BNC, IMAGE GRABBER BOARD |
1 |
$ 950.00 |
|
|
8102012 |
CVT PERSONAL COMPUTER |
1 |
$ 2,500.00 |
|
|
8102013 |
AUSKey SOFTWARE |
1 |
$ 4,700.00 |
|
|
EXPENDABLE SUPPLIES |
||||
|
8100121 |
STANDOFF GUIDE INSERT ("Superflab") |
1 |
$ 350.00 |
|
|
8101515 |
CVT GEL 5 liters per BOX |
1 |
$ 20.00 |
|
|
8101514 |
MEMBRANE COVER (Polyethylene) 300 ea. per BOX |
1 |
$ 30.00 |
|
|
"ACRA-GRADE" SYSTEM PARTS LISTING |
||||
|
UNIT |
INCLUDED |
All prices subject to change |
QTY |
PRICE |
|
PARTNO. |
PARTNO's |
DESCRIPTION |
REQ'D |
|
|
8100001 |
-- |
SCAN HEAD COMPLETE (HIGH INCLINE) |
$ 4,000.00 |
|
|
1208193 |
RETAINING CLIPS |
2 |
$ 0.30 |
|
|
6044500 |
TRIGGER PIN |
1 |
$ 2.80 |
|
|
6045500 |
SWITCH LOCKNUT |
1 |
$ 3.30 |
|
|
6046093 |
SEAL RING |
1 |
$ 1.40 |
|
|
6047559 |
SWITCH COMPLETE |
1 |
$ 32.10 |
|
|
7706700 |
HANDLE COVER |
1 |
$ 20.40 |
|
|
7706900 |
GASKET |
1 |
$ 5.20 |
|
|
7811056 |
2-015 "O"-RING |
1 |
$ 1.90 |
|
|
8100100 |
BOTTOM COVER BOLT |
2 |
$ 8.50 |
|
|
8100102 |
SCREEN ADAPTER (HIGH INCLINE) |
1 |
$ 20.00 |
|
|
8100104 |
PEN CLAMP |
1 |
$ 100.00 |
|
|
8100105 |
POSITIONING GUIDE (SKIN OFF) |
1 |
$ 20.00 |
|
|
8100106 |
AUS TRANSDUCER HOUSING (HIGH INCLINE) |
1 |
$ 1,600.00 |
|
|
8100107 |
TRANSDUCER COVER |
1 |
$ 400.00 |
|
|
8100108 |
POSITIONING GUIDE (SKIN ON) (optional) |
A/N |
$ 20.00 |
|
|
8100109 |
HANDLE TRANSITION PIECE |
1 |
$ 150.00 |
|
|
8100112 |
WIRE ENTRY COVER PLATE WELDMENT |
1 |
$ 40.00 |
|
|
8100113 |
SST SHROUD |
1 |
$ 50.00 |
|
|

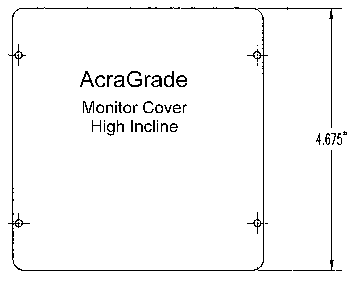

8100120 |
MONITOR COVER (HIGH INCLINE) |
1 |
$ 60.00 |
|
|
8100121 |
STANDOFF GUIDE INSERT (Superflab) |
1 |
$ 350.00 |
|
|
8100124 |
WIRE ENTRY COVER PLATE GASKET` |
1 |
$ 15.00 |
|
|
8100125 |
TRANSDUCER COVER LOCATOR BOLT |
1 |
$ 4.75 |
|
|
8100127 |
HANDLE |
1 |
$ 100.00 |
|
|
8100128 |
TRIGGER |
1 |
$ 25.00 |
|
|
8101501 |
CORD MALE (12 FT) |
1 |
$ 50.00 |
|
|
8101502 |
PLASTIC CABLE GLAND, 1/4" |
1 |
$ 15.00 |
|
|
8101503 |
PLASTIC CABLE GLAND, 1/2" |
1 |
$ 15.00 |
|
|
8101506 |
COAXIAL CABLE, 12 FT, W/BNC CONNECTOR |
1 |
$ 30.00 |
|
|
8101507 |
3" LCD MONITOR |
1 |
$ 310.00 |
|
|
8101508 |
10-32 x 3/4" THUMB SCREW (POS'N GUIDE) |
1 |
$ 5.00 |
|
|
8101509 |
1/4-20 x 2" EYE BOLT |
1 |
$ 10.00 |
|
|
8101513 |
PEN CLAMP SCREW |
1 |
$ 5.00 |
|
|
9800016 |
3-48 x 1/4" SLOTTED MACHINE SCREW |
4 |
$ 0.25 |
|
|
9800123 |
8-32 x 1/2" ROUND HEAD MACHINE SCREW |
4 |
$ 0.25 |
|
|
9800204 |
1/4-20 x 1/2" ROUND HEAD SCREW |
1 |
$ 0.25 |
|
|
9800343 |
6-32 x 3/4" FLAT HEAD SCREW |
2 |
$ 0.25 |
|
|
9800357 |
8-32 x 1/2" FLAT HEAD MACHINE SCREW |
4 |
$ 0.25 |
|
|
9801091 |
10-32 x 1/2" FLAT HEAD SOCKET CAP SCREW |
2 |
$ 0.25 |
|
|
9801279 |
8-32 x 5/8" SOCKET HEAD CAP SCREW |
4 |
$ 0.25 |
|
|
9801678 |
1/4-20 HEX NUT |
3 |
$ 0.25 |
|
|
9801932 |
#8 LOCK WASHER |
4 |
$ 0.25 |
|
|
9801935 |
1/4" LOCKWASHER |
1 |
$ 0.25 |
|
|
9802740 |
10-24 x 1/2" HEX HEAD MACHINE SCREW |
2 |
$ 0.25 |
|
|
9902668 |
SCREWS 6-32 x 1/4" |
4 |
$ 0.25 |
|
|
"ACRA-GRADE" SYSTEM PARTS LISTING |
||||
|
UNIT |
INCLUDED |
All prices subject to change |
QTY |
PRICE |
|
PARTNO. |
PARTNO's |
DESCRIPTION |
REQ'D |
|
|
8100002 |
-- |
SCAN HEAD COMPLETE (LOW INCLINE) |
$ 4,000.00 |
|
|
1208193 |
RETAINING CLIPS |
2 |
$ 0.30 |
|
|
6044500 |
TRIGGER PIN |
1 |
$ 2.80 |
|
|
6045500 |
SWITCH LOCKNUT |
1 |
$ 3.30 |
|
|
6046093 |
SEAL RING |
1 |
$ 1.40 |
|
|
6047559 |
SWITCH COMPLETE |
1 |
$ 32.10 |
|
|
7706700 |
HANDLE COVER |
1 |
$ 20.40 |
|
|
7706900 |
GASKET |
1 |
$ 5.20 |
|
|
7811056 |
2-015 "O"-RING |
1 |
$ 1.90 |
|
|
8100100 |
BOTTOM COVER BOLT |
2 |
$ 8.50 |
|
|
8100101 |
SCREEN ADAPTER (LOW INCLINE) |
1 |
$ 20.00 |
|
|
8100104 |
PEN CLAMP |
1 |
$ 100.00 |
|
|
8100105 |
POSITIONING GUIDE (SKIN OFF) |
1 |
$ 20.00 |
|
|
8100107 |
TRANSDUCER COVER |
1 |
$ 400.00 |
|
|
8100108 |
POSITIONING GUIDE (SKIN ON) (optional) |
A/N |
$ 20.00 |
|
|
8100109 |
HANDLE TRANSITION PIECE |
1 |
$ 150.00 |
|
|
8100111 |
AUS TRANSDUCER HOUSING (LOW INCLINE) |
1 |
$ 1,600.00 |
|
|
8100112 |
WIRE ENTRY COVER PLATE WELDMENT |
1 |
$ 40.00 |
|
|
8100113 |
SST SHROUD |
1 |
$ 50.00 |
|
|

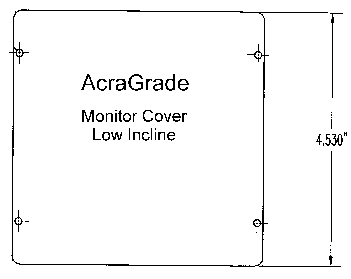

8100119 |
MONITOR COVER (LOW INCLINE) |
1 |
$ 60.00 |
|
|
8100121 |
STANDOFF GUIDE INSERT (Superflab) |
1 |
$ 350.00 |
|
|
8100124 |
WIRE ENTRY COVER PLATE GASKET` |
1 |
$ 15.00 |
|
|
8100125 |
TRANSDUCER COVER LOCATOR BOLT |
1 |
$ 4.75 |
|
|
8100127 |
HANDLE |
1 |
$ 100.00 |
|
|
8100128 |
TRIGGER |
1 |
$ 25.00 |
|
|
8101501 |
CORD MALE (12 FT) |
1 |
$ 50.00 |
|
|
8101502 |
PLASTIC CABLE GLAND, 1/4" |
1 |
$ 15.00 |
|
|
8101503 |
PLASTIC CABLE GLAND, 1/2" |
1 |
$ 15.00 |
|
|
8101506 |
COAXIAL CABLE, 12 FT, W/BNC CONNECTOR |
1 |
$ 30.00 |
|
|
8101507 |
3" LCD MONITOR |
1 |
$ 310.00 |
|
|
8101508 |
10-32 x 3/4" THUMB SCREW (POS'N GUIDE) |
1 |
$ 5.00 |
|
|
8101509 |
1/4-20 x 2" EYE BOLT |
1 |
$ 10.00 |
|
|
8101513 |
PEN CLAMP SCREW |
1 |
$ 5.00 |
|
|
9800016 |
3-48 x 1/4" SLOTTED MACHINE SCREW |
4 |
$ 0.25 |
|
|
9800123 |
8-32 x 1/2" ROUND HEAD MACHINE SCREW |
4 |
$ 0.25 |
|
|
9800204 |
1/4-20 x 1/2" ROUND HEAD SCREW |
1 |
$ 0.25 |
|
|
9800343 |
6-32 x 3/4" FLAT HEAD SCREW |
2 |
$ 0.25 |
|
|
9800357 |
8-32 x 1/2" FLAT HEAD MACHINE SCREW |
4 |
$ 0.25 |
|
|
9801091 |
10-32 x 1/2" FLAT HEAD SOCKET CAP SCREW |
2 |
$ 0.25 |
|
|
9801279 |
8-32 x 5/8" SOCKET HEAD CAP SCREW |
4 |
$ 0.25 |
|
|
9801678 |
1/4-20 HEX NUT |
3 |
$ 0.25 |
|
|
9801932 |
#8 LOCK WASHER |
4 |
$ 0.25 |
|
|
9801935 |
1/4" LOCKWASHER |
1 |
$ 0.25 |
|
|
9802740 |
10-24 x 1/2" HEX HEAD MACHINE SCREW |
2 |
$ 0.25 |
|
|
9902668 |
SCREWS 6-32 x 1/4" |
4 |
$ 0.25 |
|
|

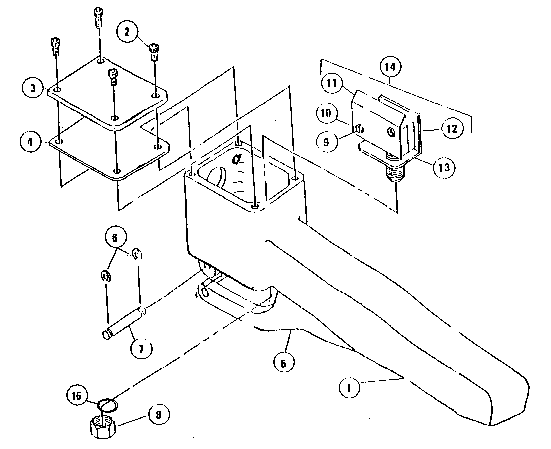

"ACRA-GRADE" SCAN HEAD HANDLE PARTS |
||||
|
All prices subject to change |
||||
|
REF |
PART NUMBER |
DESCRIPTION |
QTY |
PRICE |
|
1 |
8100127 |
HANDLE |
1 |
$ 100.00 |
|
2 |
9902668 |
SCREWS |
4 |
$ 0.50 |
|
3 |
7706700 |
HANDLE COVER |
1 |
$ 20.40 |
|
4 |
7706900 |
GASKET |
1 |
$ 5.20 |
|
5 |
8100128 |
TRIGGER |
1 |
$ 25.00 |
|
6 |
1208193 |
RETAINING CLIPS |
2 |
$ 0.30 |
|
7 |
6044500 |
TRIGGER PIN |
1 |
$ 2.80 |
|
8 |
6045500 |
SWITCH LOCKNUT |
1 |
$ 3.30 |
|
9 |
9901671 |
NUTS |
2 |
$ 0.30 |
|
10 |
9901951 |
LOCKWASHER |
2 |
$ 0.50 |
|
11 |
6048500 |
INSULATOR |
1 |
$ 1.50 |
|
12 |
6048600 |
SWITCH |
1 |
$ 12.70 |
|
13 |
6047660 |
SWITCH BRACKET |
1 |
$ 27.50 |
|
14 |
6047559 |
SWITCH COMPLETE (ITEMS 9, 10, 11, 12, & 13) |
1 |
$ 32.10 |
|
15 |
6046093 |
SEAL RING |
1 |
$ 1.40 |
|
16 |
8101700 |
HANDLE COMPLETE (INCLUDING ITEMS 21-24 FROM PAGE 4) |
1 |
$ 305.00 |
|
"ACRA-GRADE" |
|||||
|
RECOMMENDED SPARE PARTS |
|||||
|
All prices subject to change |
|||||
|
REF |
PART NUMBER |
DESCRIPTION |
QTY |
PRICE |
|
|
1 |
6047559 |
SWITCH COMPLETE |
2 |
$ 32.10 |
|
|
2 |
8100105 |
POSITIONING GUIDE (SKIN OFF) |
1 |
$ 20.00 |
|
|
8100108 |
POSITIONING GUIDE (SKIN ON) |
1 |
$ 20.00 |
||
|
3 |
8100113 |
SST SHROUD |
1 |
$ 50.00 |
|
|
4 |
8100119 |
MONITOR COVER (LOW INCLINE) |
1 |
$ 60.00 |
|
|
8100120 |
MONITOR COVER (HIGH INCLINE) |
1 |
$ 60.00 |
||
|
5 |
8100121 |
STANDOFF GUIDE INSERT (Superflab) |
1 |
$ 350.00 |
|
|
6 |
8101501 |
CORD MALE (12 FT) |
1 |
$ 50.00 |
|
|
7 |
8101506 |
COAXIAL CABLE (12 FT) W / BNC CONNECTOR |
1 |
$ 30.00 |
|
|
8 |
8101507 |
3" LCD MONITOR |
1 |
$ 310.00 |
|
|
9 |
8101508 |
10-32 x 3/4" THUMB SCREW (POS'N GUIDE) |
2 |
$ 5.00 |
|
|
10 |
8101510 |
POWER SUPPLY ASSY |
1 |
$ 50.00 |
|
|
11 |
8101513 |
PEN CLAMP SCREW |
2 |
$ 5.00 |
|
|
12 |
8101514 |
MEMBRANE COVER (Polyethylene) 300 ea. per BOX |
1 |
$ 30.00 |
|
|
13 |
8101515 |
CVT GEL 5 liters per BOX |
1 |
$ 20.00 |
|
|
14 |
8102001 |
ALOKA TRANSDUCER ASSEMBLY |
1 |
$ 14,763.00 |
|
ACRA-GRADE MONITOR COVERS
|
"ACRA-GRADE" |
||||
|

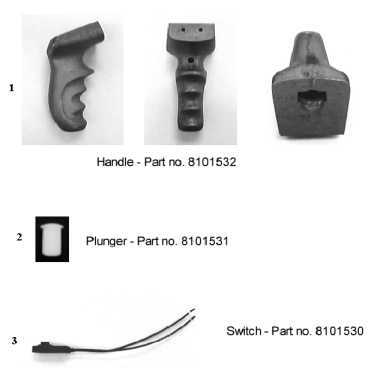

ALTERNATE STYLE HANDLE |
||||
|
All prices subject to change |
||||
|
REF |
PART NUMBER |
DESCRIPTION |
QTY |
PRICE |
|
1 |
8101532 |
HANDLE |
1 |
$100.00 |
|
2 |
8101531 |
PLUNGER |
1 |
$ 11.25 |
|
3 |
8101530 |
SWITCH |
1 |
$ 19.50 |
